RJ45 Ethernet Jack , RJ45 Jack 2P Filter With LED, RMA-065BC-20F6-YG
Specifications
| Part Number | Manufacturer Part Number | Manufacturer | Description |
| RMA-065BC-20F6-YG | RMA-065BC-20F6-YG | PHC | RJ45 Ethernet Jack , RJ45 Jack 2P Filter With LED, RMA-065BC-20F6-YG |
| |
| Series | Connector Type | Applications | Mounting Type |
| Connectors, Interconnects | PHC RJ45 Female | 100/1000 Mbps | Insert Plant |
| |
| Orientation | Termination | LED Color | Shielding |
| 90° Angle (Right) Side enter | Solder | Y/G | Shielded |
Eceatrical
1.voltage Rating:125 val
2.Insnlation Resiitance:500M min
3.Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min
Mechanical
1.Operating:750 cycles min
Materical
1.Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2.Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch
Environmental
1.Working Temeperature:-20℃to 75℃
2.Storage Temeperature:-45℃to 85℃
Mates with modular plug conforming to FCC part 68,subpart F.
Electrical Specifications:
1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec
Lead-free process,compliant RoHS

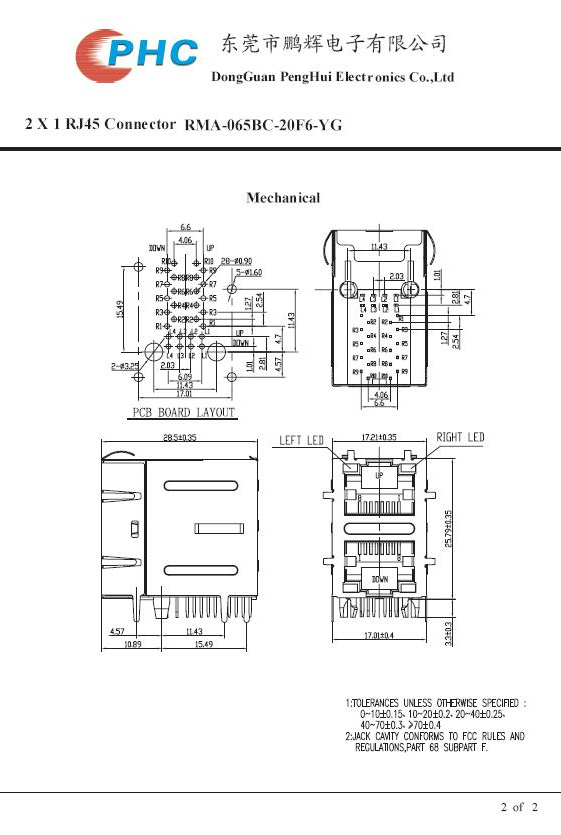

Drawing
RJ45 Ethernet Jack , RJ45 Jack 2P Filter With LED, RMA-065BC-20F6-YG
