RMS-001L-08A0-GY-6G 10/100Base-TX Magnetic RJ45 Jack

Product Categories
Dongguan Penghui Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

RMS-001L-08A0-GY-6G 10/100Base-TX Magnetic RJ45 Jack

Brand Name : PHCONN

Model Number : RMS-001L-08A0-GY-6G

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : CHINA

MOQ : 500 PCS

Price : Negotiable price

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 5000000PCS/Week

Delivery Time : 3-30 work days

Packaging Details : vacuum package,boxes in a catrton

Application : PCB,networking,Telecom,Signal

Color : black

Material : Phosphor Bronze

Insulation resistance : 1000 megohms min @ 500 vdc

Contact material : Phosphor bronze 0.46mm

Package : Tray

Sample : welcome ask sample for testing

Shield : Brass with NI plated

Contact Now

RMS-001L-08A0-GY-6G Magnetic RJ45 Jack 1x10/100Base-TX

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature -40℃ to +85℃
10. Storage Temperature -40℃ to +85℃
11. Housing Material PBT
12. Contact Material Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"
14. LED Option Yellow/Green LEDs

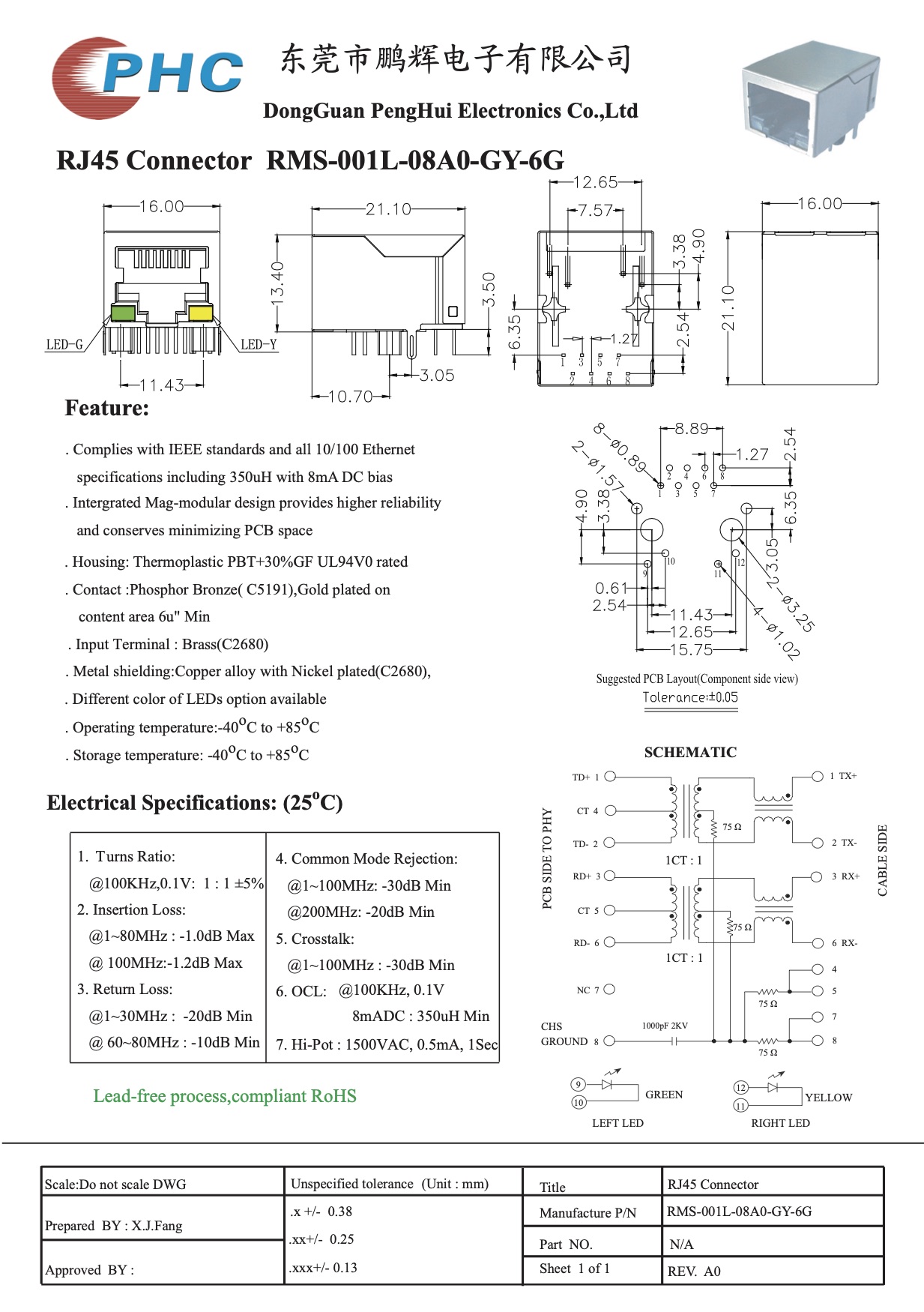

Product Drawing:


RMS-001L-08A0-GY-6G 10/100Base-TX Magnetic RJ45 Jack

FAQ

Q1: Can provide a sample test?
A: Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable.

Q2:How about the MOQ?
A: NO MOQ , 1pcs OK . Small order welocome.

Q3: What’s the lead time?
A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4:Can make customized products ?
A:Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q5:What kind of payment do accept ?
A:ONLINE ( TRADE INSURANCE),,VISA,T/T,Western union,MoneyGram.
